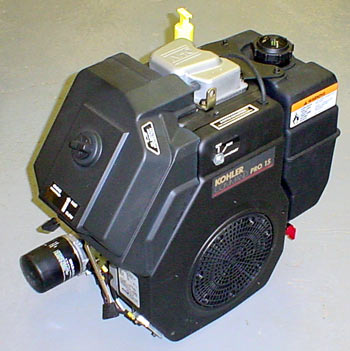

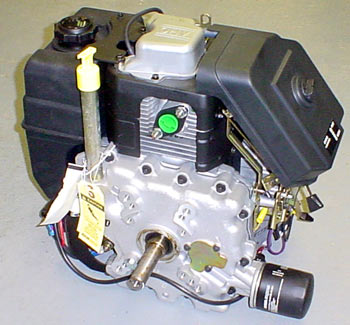

Kohler CH15S
15HP Command
Electric Start
Horizontal Engine
Kohler
Model Specifications
| Kohler Model |
Command
CH15S
 |
| Starter |
12 Volt
Electric
|
| Alternator |
15 amp
|
| MAX. POWER @ 3600 RPM hp
(kW) |
15 (11.2) |
| DISPLACEMENT cu. in. (cc) |
26.0 (426) |
| BORE in. (mm) |
3.55 (90)
|
STROKE in. (mm)
|
2.64 (67)
|
| PEAK TORQUE @ MAXIMUM lbs.
ft. (Nm) |
25.3 (34.3) @ 2400 |
| COMPRESSION RATIO |
8.5:1
|
DRY WEIGHT
lbs. (kg)
|
88.3 (40)
|
| LUBRICATION |
Full pressure
w/full-flow filter
|
| Oil filter |
Spin On
|
| OIL
CAPACITY U.S. quarts (liters) |
2.0 (1.9) |
DIMENSIONS
L x W x H in
|
13.41 x 20.18
x 17.7
|
| Shaft |
Horizontal
|
Shaft
Diameter
|
1" |
Cylinders
|
Single
|
Cooling
|
Air
|
Engine Type
|
4-cycle, OHV,
gasoline |
Cast Iron
Cylinder Liner
|
STD |
|
|
|
Kohler CH15S
15HP Command
Electric Start
Horizontal Engine
Kohler Engine
Sold Out
No Longer
Available......
|
Free
Shipping on This
Kohler Engine
|
Kohler CH15S
15HP Command
Electric Start
Horizontal Engine |
|
|
The kohler CH15S single cylinder, 4-cycle, horizontal shaft 15 HP
engine has reliable features, including: OHV, hydraulic valve lifters,
full-pressure lubrication, a cast iron cylinder liner, and aluminum
block construction.
|
Easy Dependable Starts
- Electronic ignition system
- Recoil or electric starter
- Automatic compression release
Reliability & Long-life Design
- Cast iron cylinder liner
- Hydraulic valve lifters
- Dual-element air filter with foam pre-cleaner
- Full-pressure lubrication
- Spin-on, full-flow oil filter
- High-flow cooling fan
|
Peak Power Performance
- Mechanical fuel pump
- Overhead valve (OHV) design
- High-inertia flywheel
Quiet, Smooth Operation
- Integrated muffler (option)
- Helical gears
- CARB & EPA emission-certified
User-friendly Maintenance
- Easy-access oil fill/dipstick
- Two-year limited warranty
|
|
|
